Controls are an integral part to a heat trace circuit or heat trace system where the control of multiple circuits is crucial to system production. Mechanical thermostats are capable of handling most heat trace applications ranging from freeze protection and process temperature maintenance. Control panels or distribution panels are capable of handling large numbers of heat trace circuits in one convenient enclosure. They can be equipped with certain features to alert field personnel of individual circuit issues or register high/low values. They can also be pre configured with GFCI for additional protection against ground fault leakage.

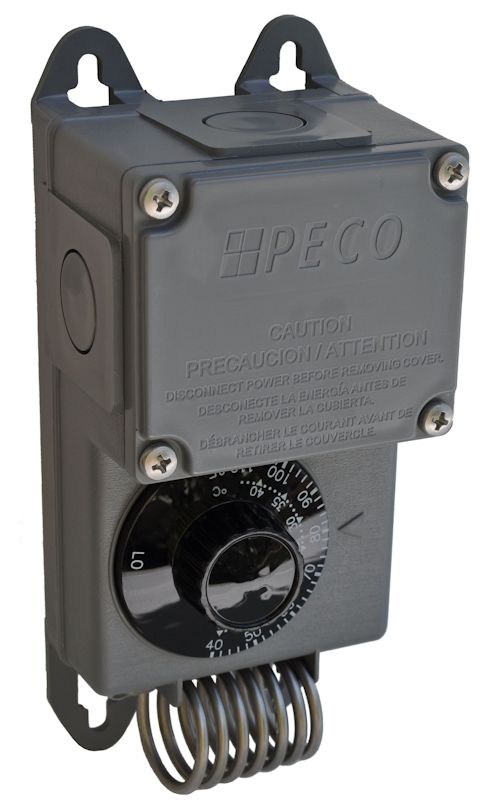

TF115 Ambient Sensing Thermostat

The TF115 ambient sensing thermostat is designed to sample temperature changes in the air. The TF115 can be used in a wide range of heating applications and can serve as a high limit backup for "sensitive" applications. The NEMA 4X raintight enclosure provides adequate protection in most environments. The TF115 thermostat has a temperature range of 40°F to 110°F and can handle up to 22A at 277VAC. Click on the PDF icon below for more information.

TF115

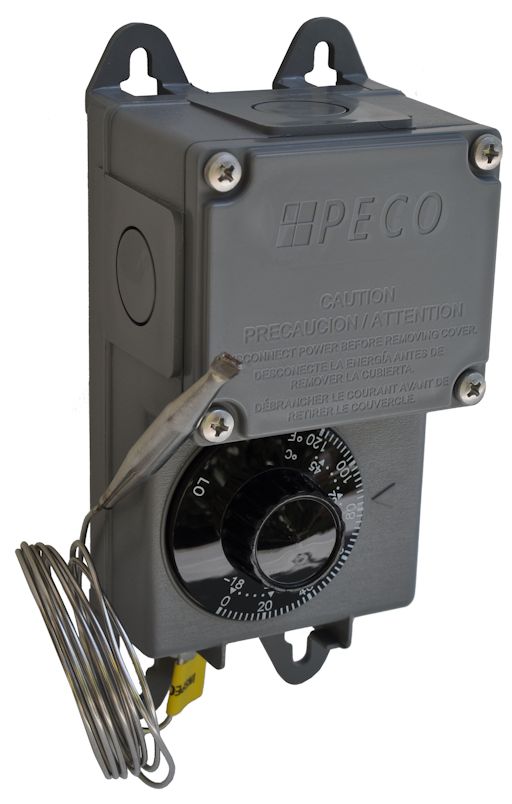

TRF115 Line Sensing Thermostat

The TRF115 line sensing thermostat is designed to sample temperature changes through a remote sensing probe (bulb). This is typically achieved on process pipes, tank walls, hoppers, gutter/downspouts, etc. The TRF115 can be used in a wide range of heating applications and can serve as a high limit backup for "sensitive" applications. The NEMA 4X raintight enclosure provides adequate protection in most environments. The TRF115 thermostat has a temperature range of 0°F to 120°F and can handle up to 22A at 277VAC. Click on the PDF icon below for more information.

TRF115

A419 Thermostat

The A419 thermostat is an electronic temperature control which can be programmed through a lockable user interface. The large LCD panel gives the user visual readouts of control functions including sensed temperature. The A419 thermostat can be ordered in the standard ambient sensing configuration or with an additional 6-12/ ft. sensor wire for line sensing configuration. The NEMA 4X raintight enclosure provides adequate protection in most environments. The A419 thermostat has a temperature range of -30°F to 212 °F and can handle up to 8.7A at 277VAC. Click on the PDF icon below for more information.

A419L

B121 Ambient Sensing Thermostat

The B121 ambient sensing thermostat is an explosion proof and weatherproof temperature control in a light-weight die cast aluminum enclosure. The B121 thermostat is approved for use in both Class 1 Division 2 and Class 1 Division 1 hazardous areas. The B121 thermostat has a temperature range of 25 °F to 325 °F and can handle up to 22A at 480VAC. Click on the PDF icon below for more information.

B121

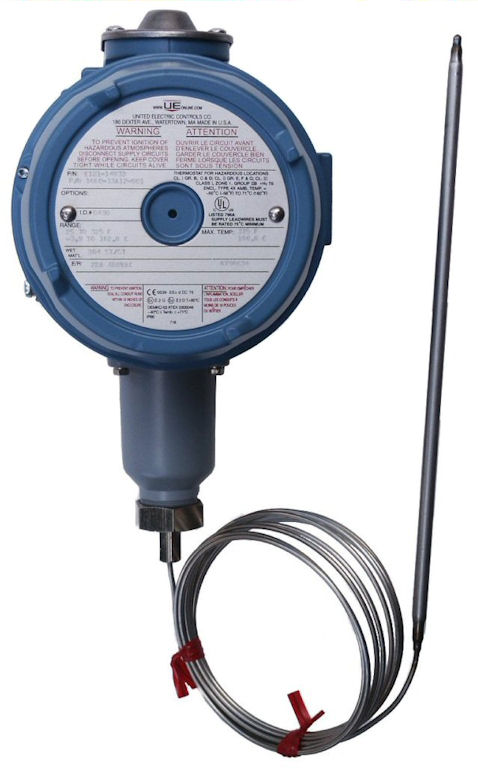

E121 Line Sensing Thermostat

The E121 line sensing thermostat is an explosion proof and weatherproof temperature control in a light-weight die cast aluminum enclosure. The E121 thermostat is approved for use in both Class 1 Division 2 and Class 1 Division 1 hazardous areas. The E121 thermostat has a temperature range of 25 °F to 325 °F and can handle up to 22A at 480VAC. Click on the PDF icon below for more information.

E121L

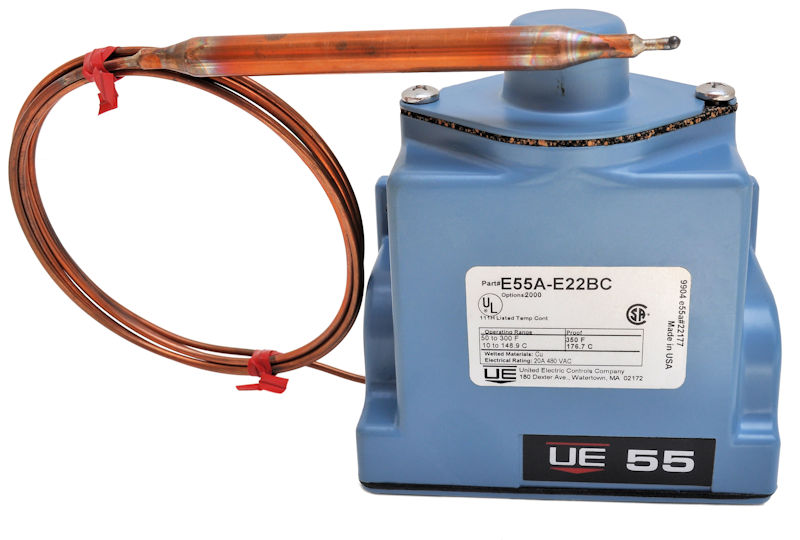

E55 Line Sensing Thermostat

The E55 line sensing thermostat is an NEMA 4X temperature control in a light-weight die cast aluminum enclosure. The E55 thermostat is approved for use in ordinary and corrosive locations. It has a temperature range of 50°F to 400°F and can handle up to 22A at 480VAC. Click on the PDF icon below for more information.

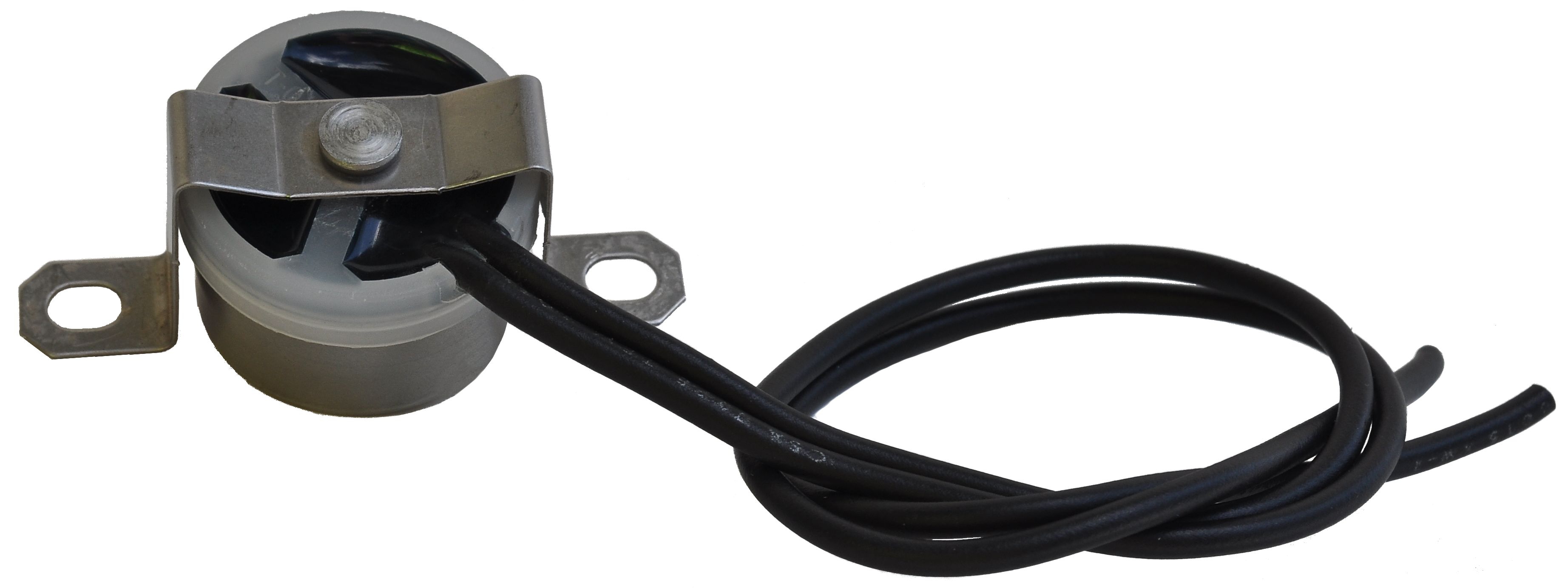

TD-1 Snap Action Thermostat

The TD-1 thermostat can function as an ambient sensing or line sensing thermostat. The TD-1 can be used in a wide range of heating applications and is designed for use ordinary areas. The thermostat can be placed in most NEMA 4X enclosures for ambient sensing mode or sandwiched between process lines, tank walls, and their insulation when configured as line sensing. The TD-1 thermostat has a setpoint of 40°F and can handle up to 5A at 240VAC. Click on the PDF icon below for more information.

TD-1

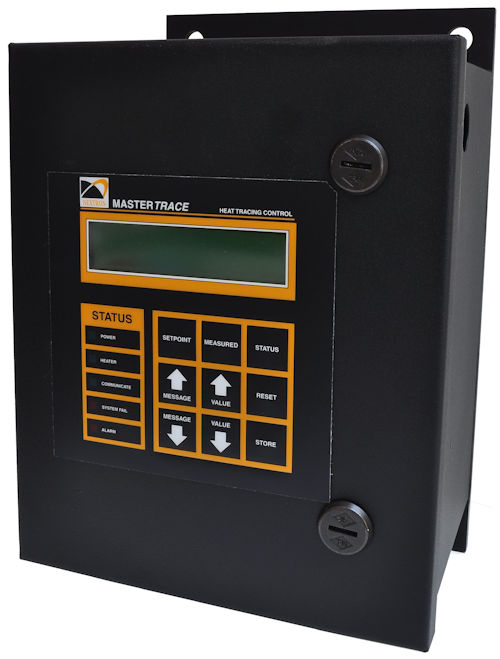

MS2000 Control Panels

MasterTrace panels come in single and modularized multi-loop configurations for in-depth control and monitoring of common or complex heat trace systems. MasterTrace panels can be used in a broad range of heat trace applications and are approved for use in Class 1 Division 2 hazardous locations. Each panel comes in a NEMA 4X enclosure and can be equipped with other enhancements to suit environmental extremes. Click on the PDF icon below for more information.

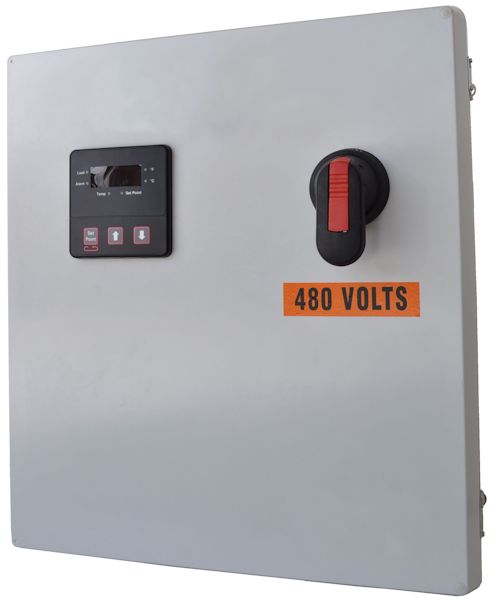

HTDP Distribution Panels

Control panels are custom engineered according to job design and specifications. Control panels serve a number of heat tracing application, including, but not limited to process control at refineries, cogeneration facilities, freezer warehouses, etc. All control panels feature a NEMA 4X enclosure and can be used in hazardous environments when remotely mounted. Click on the PDF icon below for more information.

DP

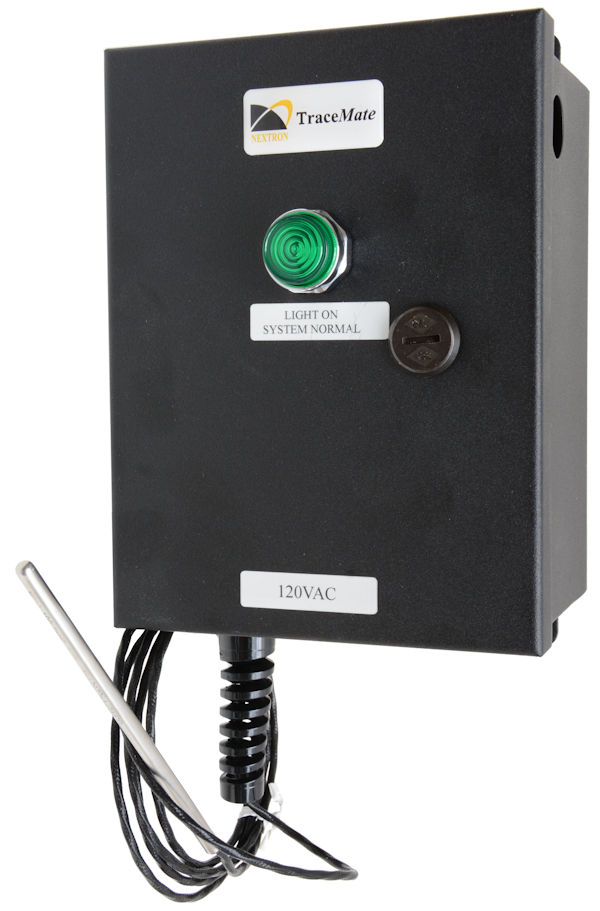

TRACE MATE Control

The TraceMate is an electronic temperature control designed for indoor/outdoor use in non-hazardous or Class 1 Division 2 hazardous locations. It not only controls and monitors temperature, but also monitors your heating process for current and ground leakage with built-in GFEP. The TM is an ideal electronic control for heat trace and tubing bundle.Temperature sensing is achieved through a 100Ω, 3-wire platinum RTD mounted on the pipe.

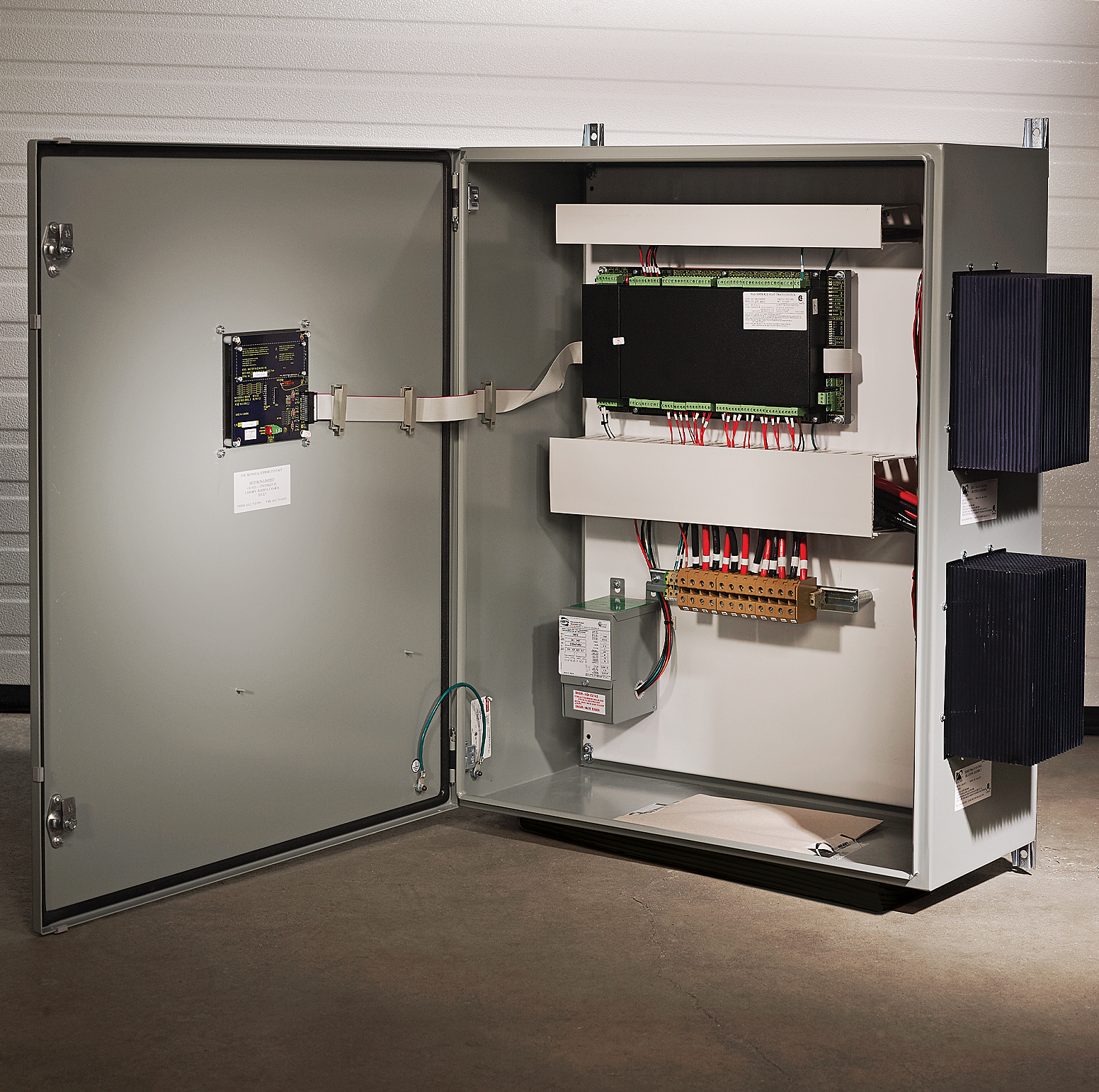

MASTER TRACE Control Panels

Master Trace heat trace control panels are a highly sophisticated microprocessor based control package designed for indoor/outdoor use in non-hazardous or Class 1 Division 2 hazardous locations. It not only controls and monitors temperature, but also monitors your heating process for current and ground leakage with built-in GFEP. The Master Trace control panel comes packed with a host of features including monitoring, logging, alarm outputs, diagnostic, RS-485 serial comm for remote operation, and many other features.

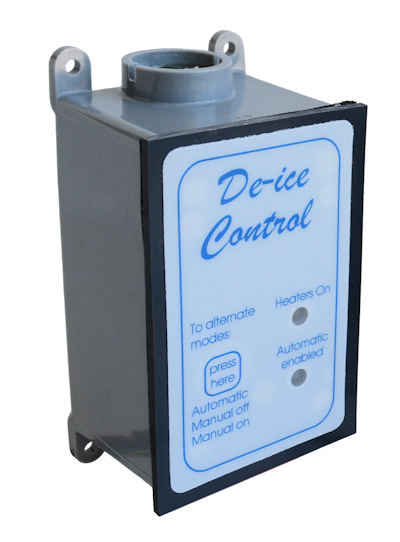

AIC4 Snow Melting Control

The AIC is a universal snow and ice detector used to control snow melting heaters. Controller operates heaters during snowfall or icing conditions. Energizes heaters only during precipitation WITH cold temperatures. Features user selectable Auto/Off/On for manual or automatic control. 16A @ 120VAC-277VAC. Can be used with optional contactors to energize large systems. Perfect for roof & gutter and or snow melting system.

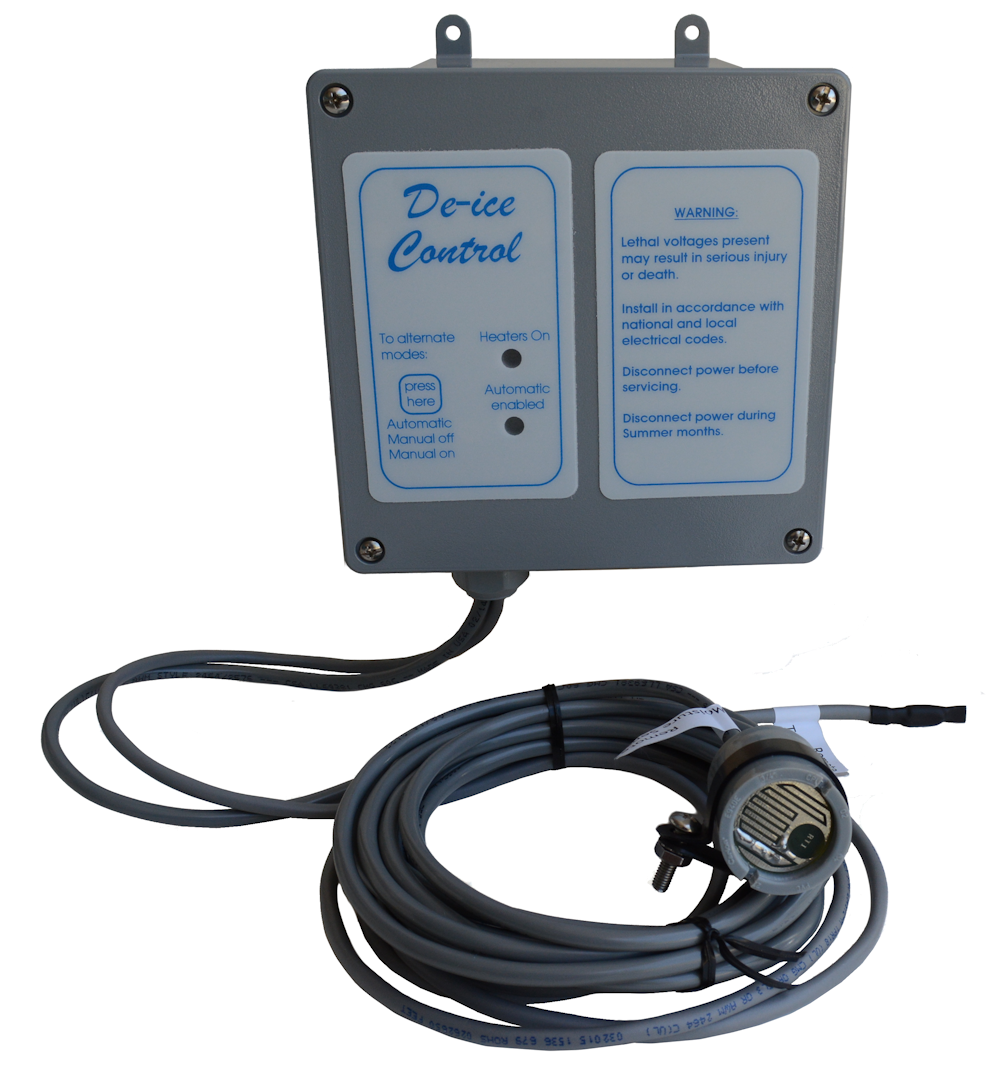

RSD45 Snow Melting Control

The RSD45 is a snow melting system controller which utilizes remote moisture and temperature sensors. Controller operates heater during icing conditions. The system operates only when ice or melt runoff water is detected. System can be manually operated, or is fully automatic. Control panel has indicators to allow visual confirmation of automatic enabled mode and indicate when the heater is on. The RSD45 has an integral 50A contactor built-in which covers most snow melting applications. Other contactors can be configured with the RSD up to 75A.
